mwp and Geozones#

Introduction#

Since mwp 7.32.?, mwp provides a UI for the Geozones function that may appear in INAV 8.0.0 (or later). As the technical details for this feature has not yet been made publicly available, the implementation described below should be considered experimental; at least the user can generate colourful shapes ...

Geozones provides (in theory at least) a set of geographical shapes that the FC can navigate around, characterised by:

  • Shape

    • Circular
    • Polygon

  • Type

    • Exclusive
    • Inclusive

  • Action

    • None
    • Avoid
    • Poshold
    • RTH

The effect these parameters have on FC behaviour will, presumably, be made available once the Geozones function is publicly available in the firmware.

mwp User interface#

mwp adds a Geozones menu option, with suboptions:

mwp geozones

Note that the Save, Export, Clear, Download and Upload options are not sensitive if no geozone is loaded. Once a geozone is loaded, some or all of these options will be enabled. The MSP options are only enabled if the FC offers feature GEOZONE.

Note that if feature GEOZONE is present, nwp will attempt to load Geozones from the FC unless the setting autoload-geozones is false, e.g.:

gsettings set org.mwptools.planner autoload-geozones false

User Interface#

  • Open, Save: Expects a textual definition in INAV CLI format
  • Export: Exports a loaded Geozone to KML. Geozone specific parameters are stored in the KML such that the original Geozone in CLI notation could be reproduced from the KML.

Editor#

mwp geozones

The icons along the top are:

  • "+": Create a new zone
  • "<" : Move to previous zone
  • ">" : Move to next zone
  • "-" : Delete current zone
  • "🗘" : Refresh : Refresh display / Start editing new zone

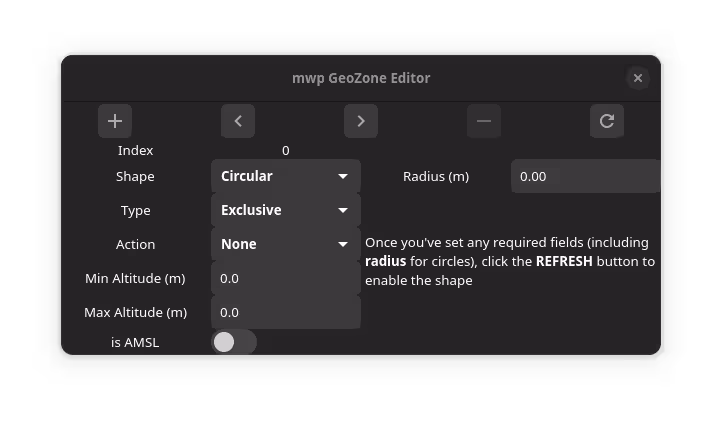

If there is no Geozone loaded, the editor is as shown at the "new zone" state: the "Shape" item is enabled and a note explains how to proceed. Note that to create a circular zone, the radius must be non-zero. If the "Shape" item is set to "Polygon", then no radius is required to proceed.

mwp geozones

Once the required details have been entered, pressing refresh draws the template shape. circle has a dragable centre and editable radius.

mwp geozones

A polygon has 3 points (the mimimum), each of which can be dragged.

mwp geozones

Additional points can be added by clicking on the map, or immediately in front of an existing point from the right mouse menu.

mwp geozones

With multiple zones loaded (or created), the user can switch between zones using the < and > icons.

mwp geozones

Zone Colours#

mwp sets line and fill characteristics for GeoZones according to the zone's type and action.

The default values are set as:

Type Action Line Fill
Exclusive None red 4 4
Exclusive Avoid red 4 red
Exclusive PosHold red 10 red
Exclusive RTH red 10 red
Inclusive None green 4 4
Inclusive Avoid green 4
Inclusive PosHold green 10
Inclusive RTH green 10 green

The values after the line colour are line width and optional dash width.

The default colours are those suggested by the user who requested that mwp support GeoZones.

The default "red" and "green" colours have some opacity set:

Type Value
Line red rgba(255,0,0,0.625)
Fill red rgba(255,0,0,0.125)
Line green rgba(0,255,0,0.625)
Fill green rgba(0,255,0,0.125)

Where line width is greater than 10, the opacity is further reduced by 20% to satisfy the author's aesthetic opinion.

User definition#

The user may specify their own colours by creating a pipe separated file, $HOME/.config/mwp/zone_colours. This is a text file of the format:

type|action|line_colour|line_width|line_dash|fill_colour

User definition fields:#

Type: The zone type as an integer (0-1 : Exclusive / Inclusive)

Action: The zone action as an integer (0-3 : None / Avoid / Poshold / RTH).

Line Colour: see below for colour formats

Line Width: In pixels, as an integer

Line Dash: In pixels, as an integer; the line will alternate on/off using this value.

Fill Colour: see below for colour formats

Colour defintion#

Colours may be defined as:

  • A "standard" name (taken from the X11 "rgb.txt" file) ; or
  • A hexadecimal value in the form #rrggbb or #rrggbbaa ; or
  • A RGB colour in the form rgb(r,g,b)); or rgba(r,g,b,a)

Where r, g, b and a are respectively the red, green, blue and alpha colour values. In the "rgb()" format, r, g, and b are either integers in the range 0 to 255 or percentage values in the range 0% to 100%, and a is a floating point value in the range 0 to 1.

If the alpha component is not specified then it is set to be fully opaque.

For "standard X11 names", an opacity may be defined by appending a floating point value in the range 0 to 1.0 to the name, separated by a semi-colon, for example steelblue;0.8

Example: default settings as zone_colours file#

The default settings can be represented in a zone_colours file as:

0|0|rgba(255,0,0,0.625)|4|4|
0|1|rgba(255,0,0,0.625)|4|0|rgba(255,0,0,0.125)
0|2|rgba(255,0,0,0.625)|10|0|rgba(255,0,0,0.125)
0|3|rgba(255,0,0,0.625)|10|0|rgba(255,0,0,0.125)
1|0|rgba(0,255,0,0.625)|4|4|
1|1|rgba(0,255,0,0.625)|4|0|
1|2|rgba(0,255,0,0.625)|10|0|
1|3|rgba(0,255,0,0.625)|10|0|rgba(0,255,0,0.125)

Where fill is not required, it is left blank.

If a line cannot be parsed, an error will the logged, giving the offending line number(s). Blank lines and comment lines (starting with # or ;) are ignored.

Please also note that floating point values must be specified with a point (.), even when the locale customary format would use comma (,).

Alternate colour expressions for the first line above are therefore:

0|0|red;0.625|4|4|
0|0|#ff0000a0|4|4|
