Safehome and Auto-land#
One of the great features of INAV 2.6 was the safehome
capability. The user can define of set of up to eight locations, and if any of these is within 200m (configurable up to 650m in INAV 2.7), then that is used as the home location for RTH (and RTH failsafe).
INAV setting#
safehome
is set in INAV using the CLI, (note more recent Configurators also have a UI); here's an example:
# safehome
safehome 0 1 508047750 -14948970
safehome 1 1 509102384 -15344850
safehome 2 1 509390336 -14613540
safehome 3 1 509149619 -15337365
safehome 4 0 508054891 -14961431
safehome 5 0 543545392 -45219430
safehome 6 0 540954148 -47328458
safehome 7 0 0 0
As you see, it's not too user friendly; the parameters are
- Index (0 - 7)
- Status (0 = don't use, 1 = can use)
- Latitude as degrees * 10,000,000 (i.e. 7 decimal places)
- Longitude as degrees * 10,000,000 (i.e. 7 decimal places)
It can be error prone to get locations into the correct format, particularly when a common source (Google Maps) only provides 6 decimal places of precision.
mwp solution#
Graphical User Interface#
Note: Since mwp 7.32.?, mwp provides additional fields for the Autoland function that first appeared in INAV 7.1.0.
mwp now offers a Safe Homes
menu option:
This will launch the Safe Home

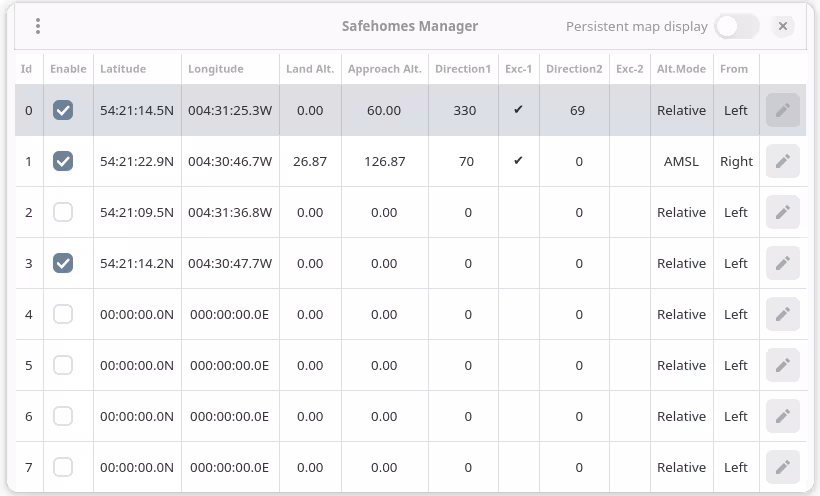

window:
From here it is possible to:
- Load safehomes from a file in CLI format. A CLI diff or dump can be used.
- Save safehomes to a file in CLI format. If a CLI diff or dump is selected, then only the
safehome
andfwapproach
stanzas are changed; other information in the diff / dump is preserved. - Display safehomes on the map. Active safehomes are displayed with greater opacity than inactive locations.
- Change the status (active, inactive). If a previously unused item is enabled, an icon is placed on the centre of the map for positioning.
- Clear (unset) one or all safehomes.
- Upload and Download
safehome
andfwapproach
data to/from the flight controller. - Manage INAV 7.1.0+ Autoland data
Note that editing functions are only available when the Safe Homes
window is active; if the windows is dismissed with icons displayed, then the icons remain on the map, but are not editable.
Display safehomes at startup#
It also is possible to set a gsettings
key to define a file of safehomes to load at startup, and optionally display (readonly) icons.
gsettings set org.mwptools.planner load-safehome ~/.config/mwp/safehome.txt,Y
This sets the default safehomes file to ~/.config/mwp/safehome.txt
and the appended ,Y
means display the icons on the map.
If the file also contains fwapproach
data, that will be applied as well.
If the name part is set to -FC-
, then the safehomes will be loaded from the flight controller, for example:
gsettings get org.mwptools.planner load-safehome
'-FC-,Y'
Example#

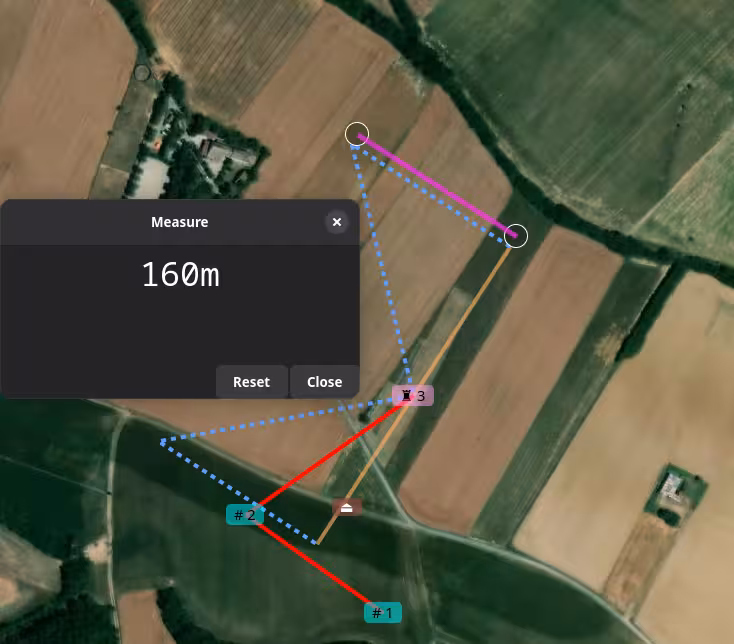

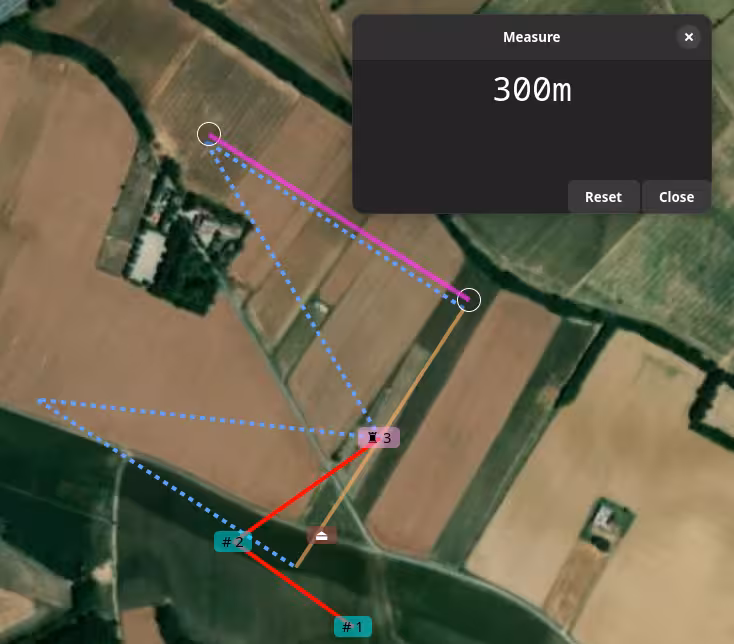

The image below shows a blackbox replay. Note that the flight home location (brown icon) is coincident with the pale orange safehome icon.
